2mm Checkered Plate Sheet

A 2mm checkered plate sheet is a type of metal sheet featuring raised patterns designed to enhance surface friction. These plates are categorized into two types: pressed and as-rolled (fabric). The primary difference between the two lies in their manufacturing process.

Both types are produced through a hot rolling process using ST37 carbon steel sheet. The ST37 sheets used in this process are sourced from the country’s most reputable steel producers, such as Mobarakeh Steel Company and Gilan Steel Company. However, in terms of appearance and technical properties, fabric checkered plates generally offer superior quality compared to the pressed variant.

At Shahin Felez Sepahan, a wide range of services is offered, including custom sheet cutting (length and width), forming, roll-to-roll processing, and sheet galvanizing based on customer requirements.

Several factors influence the final price of a checkered plate, including thickness, dimensions, and cross-sectional condition. Among the most commonly used variants is the 2 mm-thick checkered sheet, which plays a significant role in determining the final cost of this product.

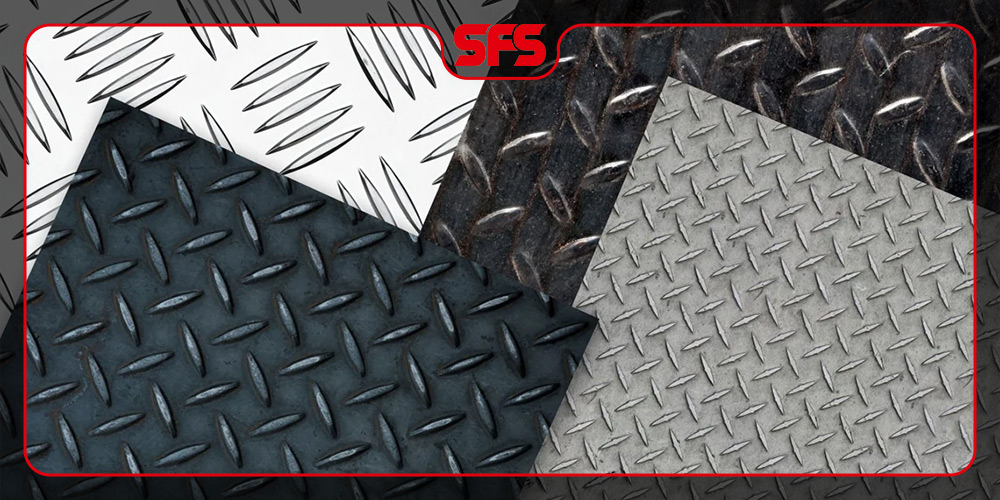

2mm checkered plate sheet

Applications of 2mm Checkered Plate

This sheet is widely used on sloped surfaces to increase traction and prevent slipping. It is also frequently employed in elevator cabins and pedestrian bridges. Additional applications include:

  • Bus stops

  • Components in household appliances

  • Fabrication of industrial machinery

  • Security barriers for high-security military zones

  • Separation and grading systems in food production lines

  • Cliff edge protection

  • Guardrails and traffic safety components

  • Shipbuilding and marine equipment manufacturing

  • Perforated plates and steel trims

  • Tanker manufacturing and storage tanks for petroleum derivatives

  • Open and closed construction equipment

Types of Checkered Patterns

types of checkered patterns

Due to their distinctive raised patterns, designed specifically to improve traction and prevent slippage, checkered sheets are widely utilized across various industries. Each pattern provides unique performance characteristics. The most common types include:

Diamond Pattern

Among the most recognized and widely used, this pattern features interlocking diamond shapes across the sheet surface, enhancing grip and friction.

Bean Pattern

This design consists of regularly spaced oval or almond-shaped protrusions. It is ideal for applications requiring higher resistance to mechanical damage.

Lens Pattern

Featuring elongated, lens-like shapes along the sheet, this pattern is suited for environments subjected to constant heavy loading.

Concave (Crescent) Pattern

Characterized by crescent or arc-shaped protrusions, this design may provide improved pressure absorption and distribution properties.

Checkerboard Pattern

Consists of evenly spaced square protrusions arranged like a checkerboard. This type is commonly chosen for applications requiring high surface strength and abrasion resistance.

Tile Pattern

This pattern resembles small square or rectangular tiles with rounded edges. In addition to increased friction, it provides excellent resistance to mechanical and thermal stress.

Material Types of 2mm Checkered Plate Sheet

2mm checkered plates are available in various materials, each offering distinct features and advantages. The main types include carbon steel, galvanized steel, stainless steel, and aluminum.

Carbon Steel Checkered Plate Sheet

Made from carbon steel (Steel Checker Plate), this is one of the most common types. It offers high tensile strength, affordability, and excellent abrasion resistance, making it suitable for a broad range of industrial applications.

Galvanized Checkered Plate Sheet

These are carbon steel plates coated with zinc to protect against corrosion. Galvanized plates are highly resistant to rust and surface wear, making them ideal for outdoor and humid environments.

Stainless Steel Checkered Plate Sheet

Produced from stainless steel, these sheets are known for their attractive bright finish, exceptional resistance to pressure and abrasion, and premium pricing. They are used in specialized applications where both aesthetics and performance are critical.

Aluminum Checkered Plate Sheet

Manufactured from high-quality aluminum, these sheets are lightweight and resistant to corrosion, wear, and impact. However, they are more sensitive to pressure and heat compared to steel sheets and are generally more expensive due to their material properties and complex production process.

Choosing the Right Checkered Plate Sheet

The selection of the checkered plate type depends on project requirements, environmental conditions, budget, and technical needs. For corrosion-prone or high-moisture environments, galvanized or stainless steel sheets are recommended. When weight reduction is a priority, aluminum plates offer the best solution. For cost-effective strength, carbon steel plates are the optimal choice.

Specifications of 2mm Checkered Plate Sheet

  • Manufactured by Mobarakeh Steel Company, one of the industry’s highest-quality producers

  • Thickness: 2mm

  • Material: ST37 (low-carbon structural steel with adequate tensile strength for general industrial use)

  • Production Standard: Complies with DIN 17100, ensuring quality and conformity with technical specifications in various industries

  • Custom Dimensions: Sheets can be cut and prepared to match project-specific requirements precisely

Key Properties of 2mm Checkered Plate Sheet

  • Weldable

  • Formable and bendable

  • High hardness and mechanical strength

  • Smooth and bright surface finish, suitable for decorative use
